Spesifikasi Singkat – BR1600SI
| Rated power in VA | BR1600SI |
| Battery type | Lead-acid battery |
| Replacement battery | APCRBC163 |
| Product weight | 12.1 kg |

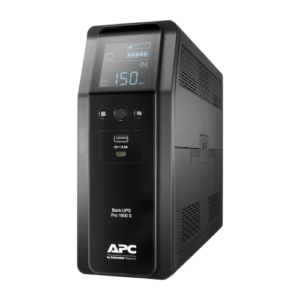

APC Back-UPS Pro, 1600VA/960W, Tower, 230V, 8x IEC C13 outlets, Sine Wave, AVR, USB Type A + C ports, LCD, User Replaceable Battery
Description |
| Produk ini merupakan bagian dari rangkaian Back-UPS Pro. UPS 1600VA ini memiliki total 8 outlet, 6 outlet menyediakan cadangan daya UPS dan perlindungan lonjakan arus, 2 outlet hanya menawarkan perlindungan lonjakan arus. Ini fitur AVR built-in dan antarmuka LCD dengan alarm yang dapat didengar. Runtime pada 100 Watt adalah 1 jam 18 menit. Dimensinya 26 x 10 x 36,8 cm dan berat 12,1 kg. Keluarga Back-UPS Pro menawarkan jaminan perlindungan daya untuk sistem komputer berkinerja tinggi, router, perangkat penyimpanan eksternal, konsol game, dan perangkat elektronik rumah dan bisnis lainnya. |
Spesifikasi APC Back-UPS – BX950MI-MS
| Overview | |
| Lead time | Usually in Stock |
| Main | |
| Run time for load | Min-maks: 96-960 W 3mnt 36dtk |
| Max. Capacity Used | 100% |
| Main Input Voltage | 230 V |
| Main Output Voltage | 230 V |
| Rated power in VA | 1600 VA |
| Rated power in W | 960 W |
| product or component type | Uninterruptible power supply (UPS) |
| Input Connection Type | IEC 60320 C13 |
| output connection type |
|
| Battery type | Lead-acid battery |
| Batteries & Runtime | |
| Number of battery filled slots | 0 |
| Number of battery free slots | 0 |
| Battery recharge time | 16 h |
| Number of battery replacement quantity | 1 |
| Battery voltage | 24 V |
| Battery capacity | 9.4 Ah |
| Battery charger power | 16 W rated |
| Battery life | 3…5 year(s) |
| Replacement battery | APCRBC163 |
| Extended runtime | 0 |
| General | |
| Provided equipment |
|
| Number of power module free slots | 0 |
| Number of power module filled slots | 0 |
| Redundant | No |
| Physical | |
| Colour | Black |
| height | 26 cm |
| Width | 10 cm |
| Depth | 36.8 cm |
| Net weight | 12.1 kg |
| Mounting preference | No preference |
| Mounting mode | Not rack-mountable |
| Two post mountable | 0 |
| USB compatible | No |
| Input | |
| Network frequency | 50/60 Hz +/- 3 Hz auto-sensing |
| Input voltage limits | 176…294 V |
| Maximum input current | 10 A |
| Switching current capacity | 10 A |
| Output | |
| Maximum configurable power in VA | 1600 VA |
| Maximum configurable power in W | 960 W |
| Output frequency- | 50/60 Hz +/- 1 Hz sync to mains |
| UPS type | Line interactive |
| Conformance | |
| Product certifications |
|
| Marking | GS Mark |
| Standards |
|
| Environmental | |
| Ambient air temperature for operation | 0…40 °C |
| Relative humidity | 0…95 % non-condensing |
| Operating altitude | 0…10000 ft |
| Ambient air temperature for storage | -15…45 °C |
| Storage Relative Humidity | 0…95 % non-condensing |
| Storage altitude | 0.0000000000…15240.0000000000 m |
| Acoustic level | 45 dBA |
| Heat dissipation | 19.5 Btu/h |
| Communications & Management | |
| Control panel | Multifunction LCD status and control console |
| Alarm | Alarm when on battery : distinctive low battery alarm : overload continuous tone alarm |
| Surge Protection and Filtering | |
| Surge energy rate | 509 J |
| Noise suppression | Full time multi-pole noise filtering : 10% of IEEE surge let-through : zero clamping response time: instantaneous |
| Packing Units | |
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 35.9 cm |
| Package 1 Width | 48.2 cm |
| Package 1 Length | 22.3 cm |
| Package 1 Weight | 13.75 kg |
| SCC14 | 10731304346927 |
| Contractual warranty | |
| Warranty | 2 years repair or replace, 3 years repair or replace for European Union countries and UK |
