Spesifikasi Singkat – SRT1500RMXLI
| Rated power in VA | 1500 VA |
| Battery type | Lead-acid battery |
| Replacement battery | APCRBC155 |
| Mounting position | Horizontal |
Keterangan
Spesifikasi UPS APC 1500VA – SRT1500RMXLI
| Overview | |
| Presentation | Perlindungan daya on-line dengan kepadatan tinggi dan konversi ganda dengan runtime yang dapat diskalakan. |
| Lead time | Usually in Stock |
| Main | |
| Run time for load 1500 W | Min-max: 150-1500 W 5min 9s |
| Max. Capacity Used | 100% |
| Main Output Voltage | 230 V |
| Other Output Voltage |
|
| Rated power in W | 1500 W |
| Rated power in VA | 1500 VA |
| Input Connection Type |
|
| Input Connection Type |
IEC 60320 C14 |
| Output connection type |
6 IEC 60320 C13 |
| Number of rack unit | 2U |
| Cable length | 1.8 m |
| Number of cables | 1 |
| Provided equipment |
|
| Batteries & Runtime | |
| Battery type | Lead-acid battery |
| Number of battery filled slots | 1 |
| Number of battery free slots | 0 |
| Battery recharge time | 3 h |
| Number of battery replacement quantity | 1 |
| Battery voltage | 48 V |
| Battery charger power | 108 W rated |
| Battery life | 3…5 year(s) |
| Replacement battery | APCRBC155 |
| Extended runtime | 1 |
| General | |
| UPS type | Double conversion online |
| product web sub-family | High density |
| Number of power module free slots | 0 |
| Number of power module filled slots | 0 |
| Redundant | No |
| Physical | |
| Colour | Black |
| height | 8.5 cm |
| Width | 43.2 cm |
| Depth | 50.5 cm |
| Net weight | 21 kg |
| Mounting preference | No preference |
| Mounting mode | Rack-mounted |
| Two post mountable | 0 |
| USB compatible | Yes |
| Mounting position | Horizontal |
| Input | |
| Network frequency | 40…70 Hz auto-sensing |
| Input voltage limits | 100…275 V 40% load 176…275 V full load |
| Output | |
| Maximum configurable power in VA | 1500 VA |
| Maximum configurable power in W | 1500 W |
| Output frequency | 50/60 Hz +/- 3 Hz sync to mains |
| Wave type | Sine wave |
| Harmonic distortion | Less than 2 % |
| Crest factor | 3 : 1 |
| Bypass type | Built-in bypass |
| Conformance | |
| product certifications |
|
| Standards |
|
| Environmental | |
| Ambient air temperature for operation | 0…40 °C |
| Relative humidity | 0…95 % non-condensing |
| Operating altitude | 0…10000 ft |
| Ambient air temperature for storage | -20…50 °C |
| Storage Relative Humidity | 0…95 % non-condensing |
| Storage altitude | 0.00…15240.00 m |
| Acoustic level | 50dBA |
| heat dissipation | 317 Btu/h |
| IP degree of protection | IP20 |
| Communications & Management | |
| Free slots | 1 |
| Alarm | Audible and visible alarms : prioritized by severity |
| Emergency power off | Yes |
| Surge Protection and Filtering | |
| Surge energy rate | 432 J |
| Packing Units | |
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 24.5 cm |
| Package 1 Width | 69.0 cm |
| Package 1 Length | 59.5 cm |
| Package 1 Weight | 32.58 kg |
| Contractual warranty | |
| Warranty | 3 years repair or replace (excluding battery) and 2 years for battery |
Produk Populer lainnya

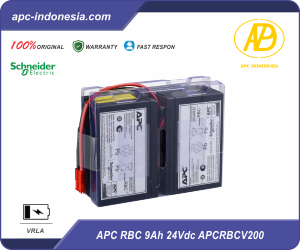

Spesifikasi APC RBC VRLA 9Ah 24Vdc APCRBCV200
Baterai APC RBC 9Ah 24Vdc APCRBCV200 Fitur & BenefitFitur APC RBC adalah replacement battery cartridge resmi dengan baterai VRLA 24V yang dirancang untuk menjaga performa dan keandalan UPS APC. Menggunakan 2 blok baterai internal berkapasitas 9Ah, baterai ini...

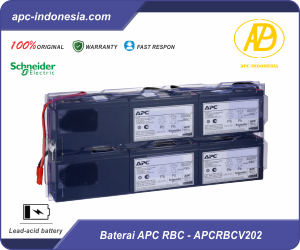

Spesifikasi Baterai APC RBC 9Ah 72V APCRBCV202
Baterai APC RBC 9Ah 72V Fitur & KelebihanFitur:APC Replacement Battery Cartridge adalah baterai VRLA 72V berkualitas tinggi yang dirancang sebagai pengganti resmi untuk UPS APC. Menggunakan 6 blok baterai internal dengan kapasitas total 9Ah, baterai ini menawarkan...

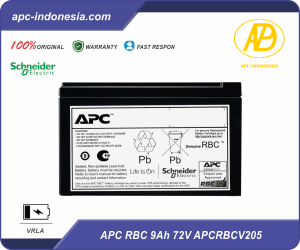

Battery VRLA APC RBC 9Ah 72V DC APCRBCV205
