Spesifikasi Singkat
| SKU | SR11KXIET |
| Battery type | Lead-acid battery |
| rated power in VA | 1000VA |
| Product weight | 23 kg |

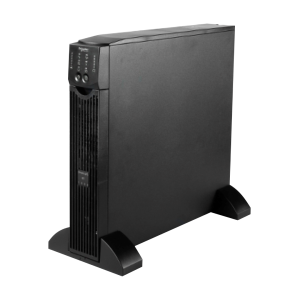

Schneider Electric On-Line UPS 1000VA, 230V, 6x IEC 60320 C13 & 2x IEC Jumpers outlets
Fitur
UPS On-Line Schneider Electric menyediakan sumber daya tanpa gangguan yang andal bagi pelanggan, bahkan di lingkungan daya yang menuntut. Keunggulannya meliputi rentang tegangan input yang sangat lebar, pengaturan tegangan output yang sangat ketat, pengaturan frekuensi, bypass internal, dan koreksi faktor daya input. Sekilas tentang UPS On-Line SR1:
Runtie yang Dapat Diskalakan Memungkinkan waktu pengoperasian tambahan untuk ditambahkan dengan cepat sesuai kebutuhan Baterai yang Dapat Ditukar Saat Panas Memastikan Daya Tanpa Gangguan yang Bersih ke Peralatan yang Dilindungi Saat Baterai Diganti Rak/Menara Konvertibel Melindungi investasi awal UPS saat bermigrasi dari menara ke lingkungan pemasangan rak, dan terstandarisasi di berbagai aplikasi Uji mandiri otomatis
Spesifikasi Smart-UPS On-Line SR1 SR11KXIET
| Overview | |
| Lead time | Usually in Stock |
| Main | |
| Run time for load | Min-maks: 70-700 W 13mnt 49dtk |
| Kapasitas Maks. Digunakan | 100% |
| Main Input Voltage | 230 V |
| Product or component type | Uninterruptible power supply (UPS) |
| Other Input Voltage | 220 V 240 V |
| Main Output Voltage | 230 V |
| Other Output Voltage | 220 V 240 V |
| Rated power in W | 700 W |
| Rated power in VA | 1000 VA |
| Input Connection Type | IEC 60320 C14 |
| output connection type | 6 IEC 60320 C13 2 IEC Jumpers |
| Number of rack unit | 2U |
| Number of cables | 1 |
| Provided equipment | CD with software Smart UPS signalling RS-232 cable User manual |
| Range of product | Smart-UPS SR1 |
| Batteries & Runtime | |
| Battery type | Lead-acid battery |
| Extended runtime | 1 |
| Number of battery filled slots | 1 |
| Number of battery free slots | 0 |
| Battery recharge time | 3h |
| Number of battery replacement quantity | 1 |
| Battery life | 3…5 year(s) |
| Replacement battery | RBC31, RBC57 |
| Battery charger power | 109 W rated |
| General | |
| Number of power module | 700 |
| Number of power module | 0 |
| Number of power module filled slots | 0 |
| Redundant | No |
| UPS type | Double conversion online |
| Physical | |
| Colour | Black |
| height | 432 mm |
| Width | 85 mm |
| Depth | 483 mm |
| Net weight | 23 kg |
| Mounting location | Front |
| Mounting preference | Lower |
| Mounting mode | Not rack-mountable |
| Two post mountable | 0 |
| USB compatible | No |
| Input | |
| Network frequency | 50/60 Hz +/- 5 Hz auto-sensing |
| Input voltage limits | 160…280 V |
| Output | |
| Crest factor | 3 : 1 |
| Harmonic distortion | Less than 3 % |
| Maximum configurable power in VA | 1000 VA |
| Maximum configurable power in W | 700 W |
| Wave type | Sine wave |
| Output frequency | 50/60 Hz +/- 3 Hz user adjustable +/- 0.1 Hz sync to mains |
| Additional information | Configurable for 220 : 230 or 240 nominal output voltage |
| Conformance | |
| Product certifications | C-Tick CE GOST VDE |
| Standards | EN/IEC 62040-1:2019/A11:2021 EN/IEC 62040-2:2006/AC:2006 EN/IEC 62040-2:2018 |
| Environmental | |
| Acoustic level | 50 dBA |
| Heat dissipation | 324 Btu/h |
| Operating altitude | 0…10000 ft |
| Ambient air temperature for operation | 0…40 °C |
| Ambient air temperature for storage | -20…50 °C |
| Storage altitude | 0…15240 m |
| IP degree of protection | IP20 |
| Relative humidity | 0…95 % non-condensing |
| Storage Relative Humidity | 0…95 % non-condensing |
| Communications & Management | |
| Emergency power off | Optional |
| Free slots | 1 |
| Alarm | Alarm when on battery : distinctive low battery alarm : overload continuous tone alarm |
| Surge Protection and Filtering | |
| Surge energy rate | 420 J |
| Noise suppression |
Full time multi-pole noise filtering : 0.3% IEEE surge let-through : zero clamping response time : meets UL 1449 |
| Packing Units | |
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 28.600 cm |
| Package 1 Width | 63.000 cm |
| Package 1 Length | 59.400 cm |
| Package 1 Weight | 27.800 kg |
| Contractual warranty | |
| Warranty | 2 years repair or replace, optional on-site warranties available, optional extended warranties available |
