Spesifikasi Singkat
| SKU | SX3650CI |
| Battery type | Lead-acid battery |
| rated power in VA | 650VA |
| Product weight | 6.2 kg |

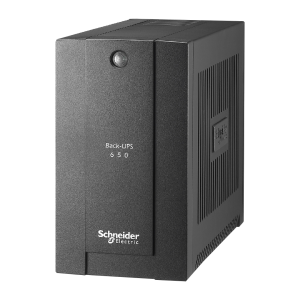

SE BACK-UPS 650VA, 230V, AVR, IEC Sockets replace by BXS750MI
Fitur
Schneider Electric Back-UPS SX3 menjaga PC, jaringan, dan perangkat penting tetap menyala saat mati listrik. Melindungi dari lonjakan, spike, petir, serta menyesuaikan tegangan otomatis (AVR) agar perangkat aman dan hemat baterai. Dirancang tangguh untuk kondisi listrik berat, dilengkapi indikator visual & audio agar mudah dipantau.
- Keunggulan utama:
- Backup daya instan saat listrik padam.
- Proteksi surge & petir.
- AVR menjaga tegangan tetap sehat.
- Tangguh & tahan lama.
- Indikator status mudah dibaca.
Spesifikasi SE BACK-UPS SX3650CI
| Overview | |
| Lead time | Usually in Stock |
| Main | |
| Run time for load | Min-max: 39-390 W 1min 2s |
| Max. Capacity Used | 100% |
| Main Input Voltage | 230 V |
| Main Output Voltage | 230 V |
| Rated power in VA | 650 VA |
| Rated power in W | 390 W |
| product or component type | Uninterruptible power supply (UPS) |
| Cable length | 1.16 m |
| Output connector type | 4 IEC 60320 C13 1 IEC Jumpers |
| Battery type | Lead-acid battery |
| Range of product | Back-UPS |
| Batteries & Runtime | |
| Number of battery filled slots | 0 |
| Number of battery free slots | 0 |
| Battery recharge time | 8 h |
| Battery life | 3…5 year(s) |
| Extended runtime | 0 |
| General | |
| Provided equipment | user manual |
| Number of power module free slots | 0 |
| Number of power module filled slots | 0 |
| Redundant | No |
| Physical | |
| Colour | Black |
| height | 142 mm |
| Width | 101 mm |
| Depth | 300 mm |
| Net weight | 4.9 kg |
| Mounting preference | No preference |
| Mounting mode | Not rack-mountable |
| Two post mountable | 0 |
| USB compatible | No |
| Input | |
| Network frequency | 45…65 Hz |
| Input voltage limits | 140…300 V |
| Maximum input current | 7 A |
| Switching current capacity | 7 A |
| Output | |
| Maximum configurable power in W | 390 W |
| Output frequency | 50/60 Hz +/- 3 Hz sync to mains 50/60 Hz +/- 1 Hz unsynchronised |
| UPS type | Line interactive |
| Wave type | Stepped approximation to a sinewave |
| Maximum configurable power in VA | 650 VA |
| Transfer time | 6 ms typical : 10 ms maximum |
| Conformance | |
| Product certifications | CE GOST NEMKO |
| Standards | EN/IEC 62040-1:2019/A11:2021 EN/IEC 62040-2:2006/AC:2006 EN/IEC 62040-2:2018 |
| Environmental | |
| Ambient air temperature for operation | 0…40 °C |
| Relative humidity | 0…95 % |
| Operating altitude | 0…10000 ft |
| Ambient air temperature for storage | -15…45 °C |
| Storage altitude | 0…9144 m |
| Acoustic level | 45 dBA |
| Communications & Management | |
| Alarm | Alarm when on battery : distinctive low battery alarm : overload continuous tone alarm |
| Control panel | LED Status display with on line : on battery |
| Surge Protection and Filtering | |
| Surge energy rate | 273 J |
| Packing Units | |
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 19.800 cm |
| Package 1 Width | 27.000 cm |
| Package 1 Length | 34.000 cm |
| Package 1 Weight | 7.000 kg |
| Unit Type of Package 2 | P12 |
| Number of Units in Package 2 | 10 |
| Package 2 Height | 80.000 cm |
| Package 2 Width | 80.000 cm |
| Package 2 Length | 120.000 cm |
| Package 2 Weight | 72.000 kg |
| SCC14 | 60731304307435 |
| Contractual warranty | |
| Warranty | 2 years repair or replace |
